栈,队列与数组

栈(stack) 后进先出结构

栈是一种受限的线性表,只运行在栈顶加入元素与在栈顶删除元素 alt text 栈的存储结构-顺序存储 使用数组模拟栈

C++
std::array<int, N> stack; // 用数组定义栈的最大容量
int top = -1; // 用top做栈顶指针

bool empty() return top == -1 ? true : false;

// push操作
void push(int x) {
    if (top != N - 1) stack[++top];
}

// pop操作
int pop() {
    if (!empty()) return stack[top--];
}
栈的上溢与下溢 当栈满的时候执行push操作会导致上溢;当栈为空的时候执行pop操作为导致下溢

栈的存储结构-链表实现

C++
// 定义链表节点结构
struct Node {
    int data;      // 存储数据
    Node* next;    // 指向下一个节点

    // 构造函数
    Node(int val) : data(val), next(nullptr) {}
};

// 定义栈类
class Stack {
private:
    Node* topNode;  // 栈顶指针

public:
    // 构造函数
    Stack() : topNode(nullptr) {}

    // 判断栈是否为空
    bool isEmpty() const {
        return topNode == nullptr;
    }

    // 入栈操作
    void push(int val) {
        Node* newNode = new Node(val);  // 创建新节点
        newNode->next = topNode;        // 新节点指向当前栈顶
        topNode = newNode;              // 更新栈顶指针
    }

    // 出栈操作
    void pop() {
        if (isEmpty()) {
            cout << "栈为空,无法执行出栈操作!" << endl;
            return;
        }
        Node* temp = topNode;         // 临时保存当前栈顶
        topNode = topNode->next;      // 栈顶指针下移
        delete temp;                  // 释放原栈顶节点内存
    }

    // 获取栈顶元素(不删除)
    int top() const {
        if (isEmpty()) {
            cout << "栈为空,无栈顶元素!" << endl;
            return -1; // 可以根据需要返回一个特殊值或抛出异常
        }
        return topNode->data;
    }
};
两个特殊的栈结构

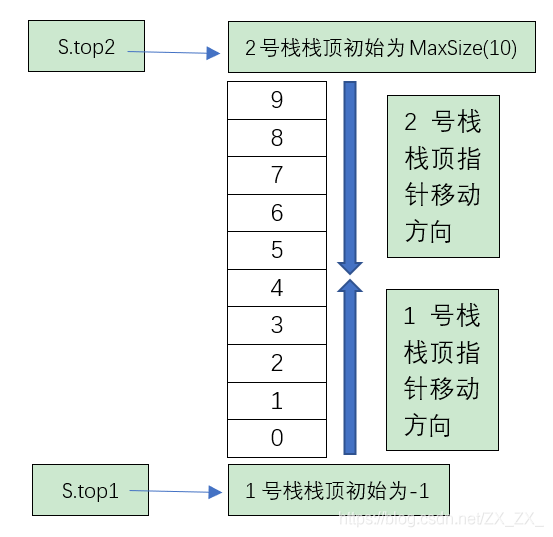

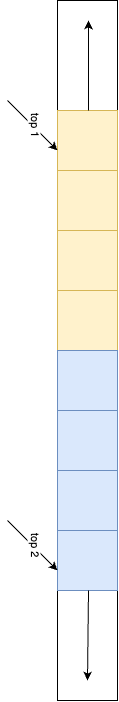

共享栈结构 两个栈向中间增长 双栈 底部重合的两个栈往外增长
alt text alt text

队列(Queen) 先进先出结构

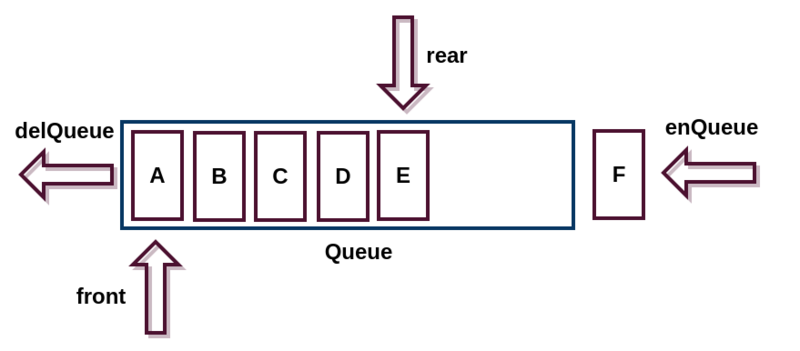

队列 队列也是一种限制访问点的线性表,只能在队头删除元素,只能往队尾插入元素.

队列一般考察顺序队列的判满条件,与循环队列操作的模拟.

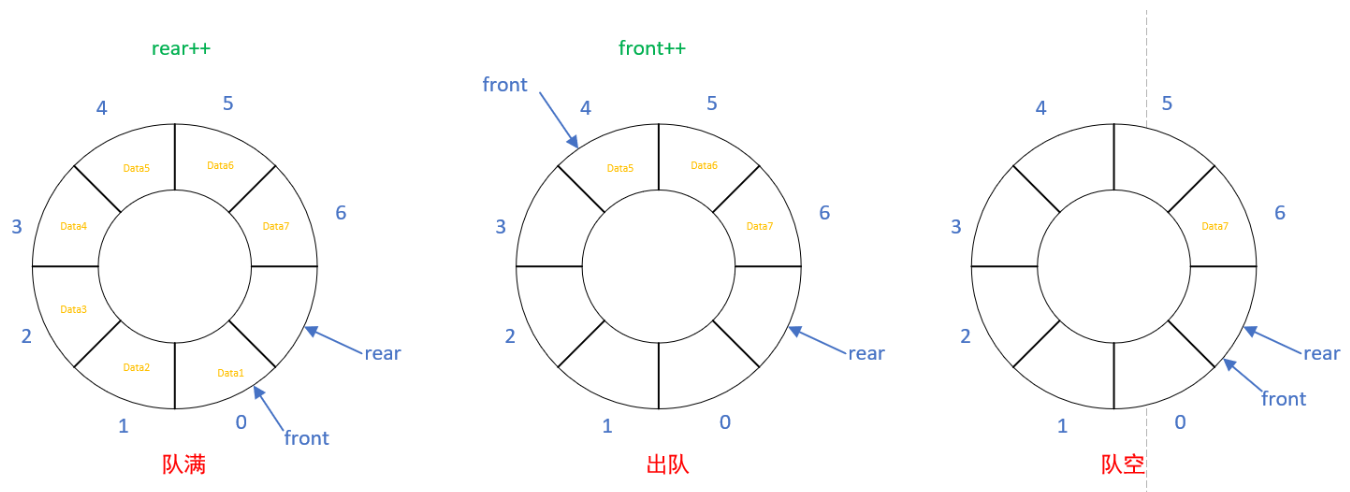

循环队列(假溢出判定):rear = capacity - 1

alt text

数组

数组最重要的特点就是可以随机存取

高维数组的存储结构

C++
std::array(std::array(int, N), N) matrix; // 写成int[N][N] matrix也可以啦

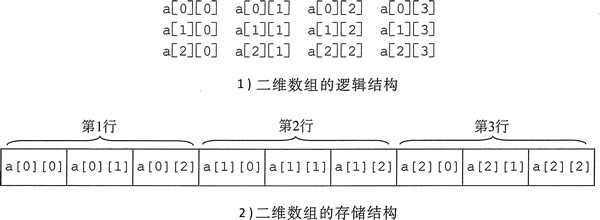

注意在计算机底层,并没有想象中的行*列结构,而是如下结构 alt text

特殊矩阵的压缩存储

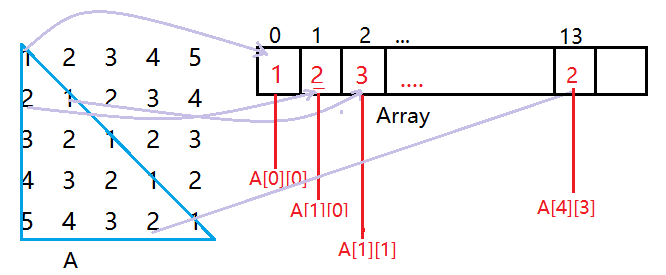

对称矩阵, 下图为按行优先的方式存储的图示 alt text

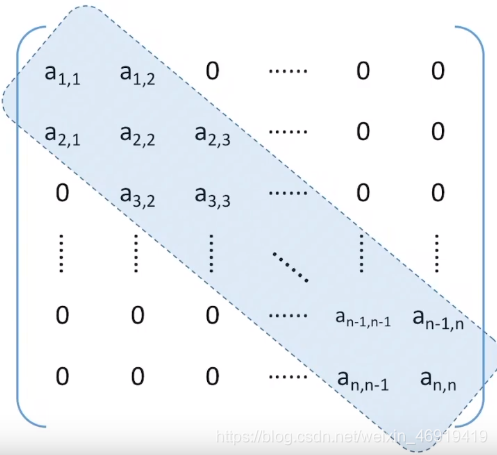

三对角矩阵

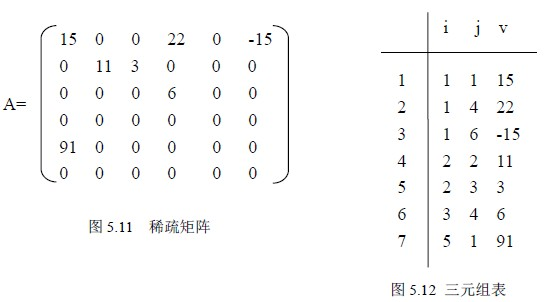

稀疏矩阵
